Solar Park Security: A Comprehensive Guide for Solar Park Perimeter Protection
Introduction To Solar Park Security:
India is aggressively pursuing solar energy as a cornerstone of its renewable energy mix. With abundant sunshine and ambitious targets, the country is rapidly expanding its Solar Park Security footprint. Government initiatives, coupled with favorable policies and increasing private investments, are driving the sector’s growth. The government of India has set targets for establishing the total renewable energy capacity to almost 500 GW by 2030.
Given the substantial investment and critical role of solar parks in India’s energy landscape, robust perimeter security is paramount. Protecting these assets from theft, vandalism, and unauthorized access is essential to ensure uninterrupted power generation, optimize return on investment, and maintain the integrity of the renewable energy infrastructure.
This blog equips you to tackle common security challenges facing Solar Park Security and design a robust perimeter. By understanding threats and exploring various security solutions for Solar Park Security, you can create a tailored plan to safeguard your investment and ensure uninterrupted solar power generation.

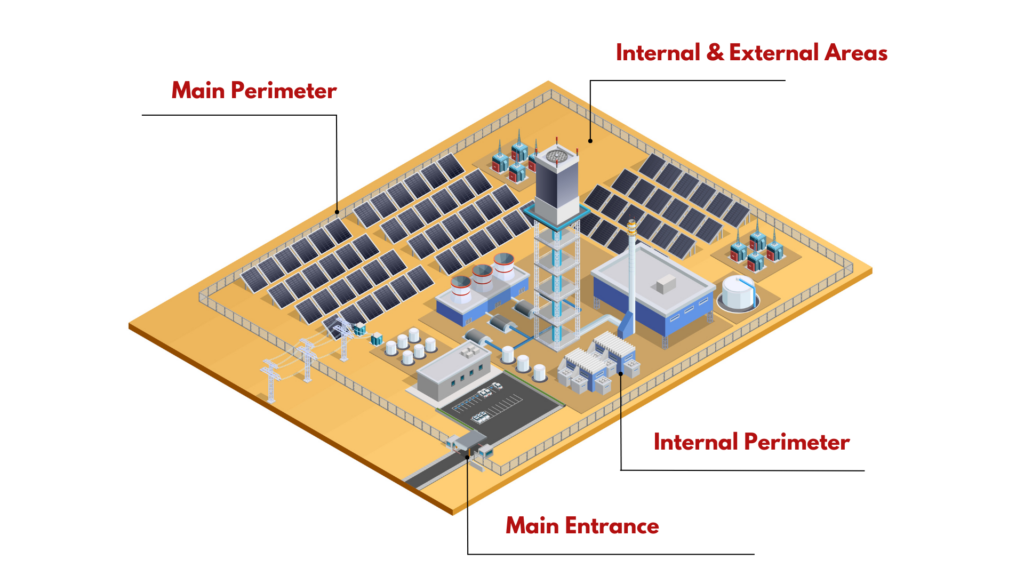

Understanding the Typical Solar Park Layout
| Main Perimeter | Main Entrance | Internal Perimeter | Internal & External Areas |
|---|---|---|---|
| Main perimeter protection is the first line of defence against intruders. A well-designed perimeter is crucial for keeping threats at bay and ensuring overall security effectiveness. | Perimeter access control regulates entry and exit at an Oil & Gas facility, ensuring that only authorized personnel and vehicles are granted access while unauthorized entities are kept out. | Several internal areas within a solar park, such as weather monitoring stations and transformer yards, need separate fencing for safety and criticality. Often, this fencing is mainly for demarcation with entry/exit access. | Most premises have a wall or fence to deter intruders. However, no barrier is completely impenetrable. Immediate detection of intrusion attempts is crucial for taking corrective actions. |
Main Perimeter:
Important factors for Designing Solar Park Security for the Main Perimeter
 Demarcation Physical barriers like fences or walls create a clear boundary, deterring unauthorised access and defining the protected area. |
 Deterrence Deterrence prevents intrusions. Combine physical barriers with wall top solutions like concertina coils and electric fences for a formidable defence |
 Detection Surveillance is the final layer, using technologies like fibre optic sensors and electric fences to monitor the perimeter and trigger real-time alarms. |
For Perimeter’s with an Existing Precast Wall
Traditional Solution for Solar Park Security
 |
This is the traditional security design and also quite popular typically involves having a precast wall with an anti-climbing system like Concertina coils on Y-angles. |
The Solar Park Security has been ramped up over some time in an evolutionary way by augmenting it with an Electric Fence or Fibre Optic Sensor for intrusion detection.

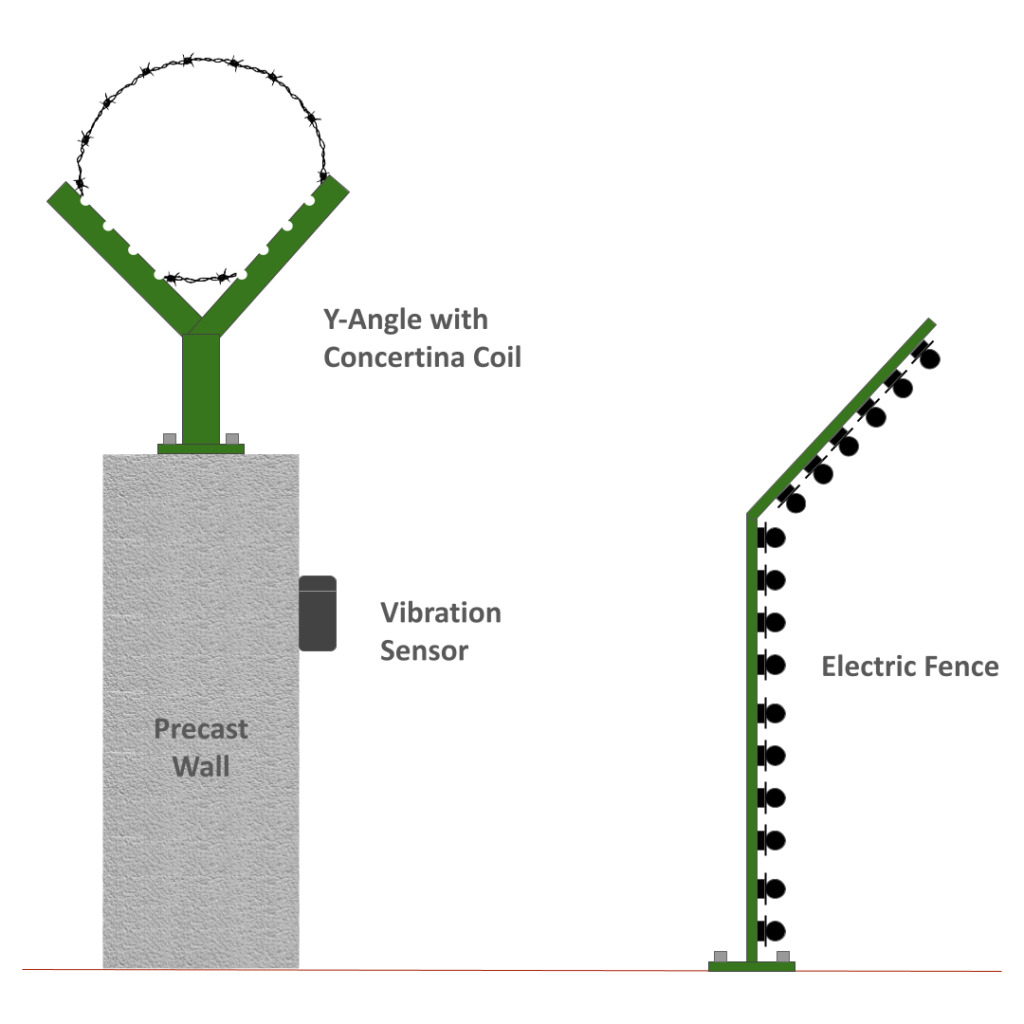

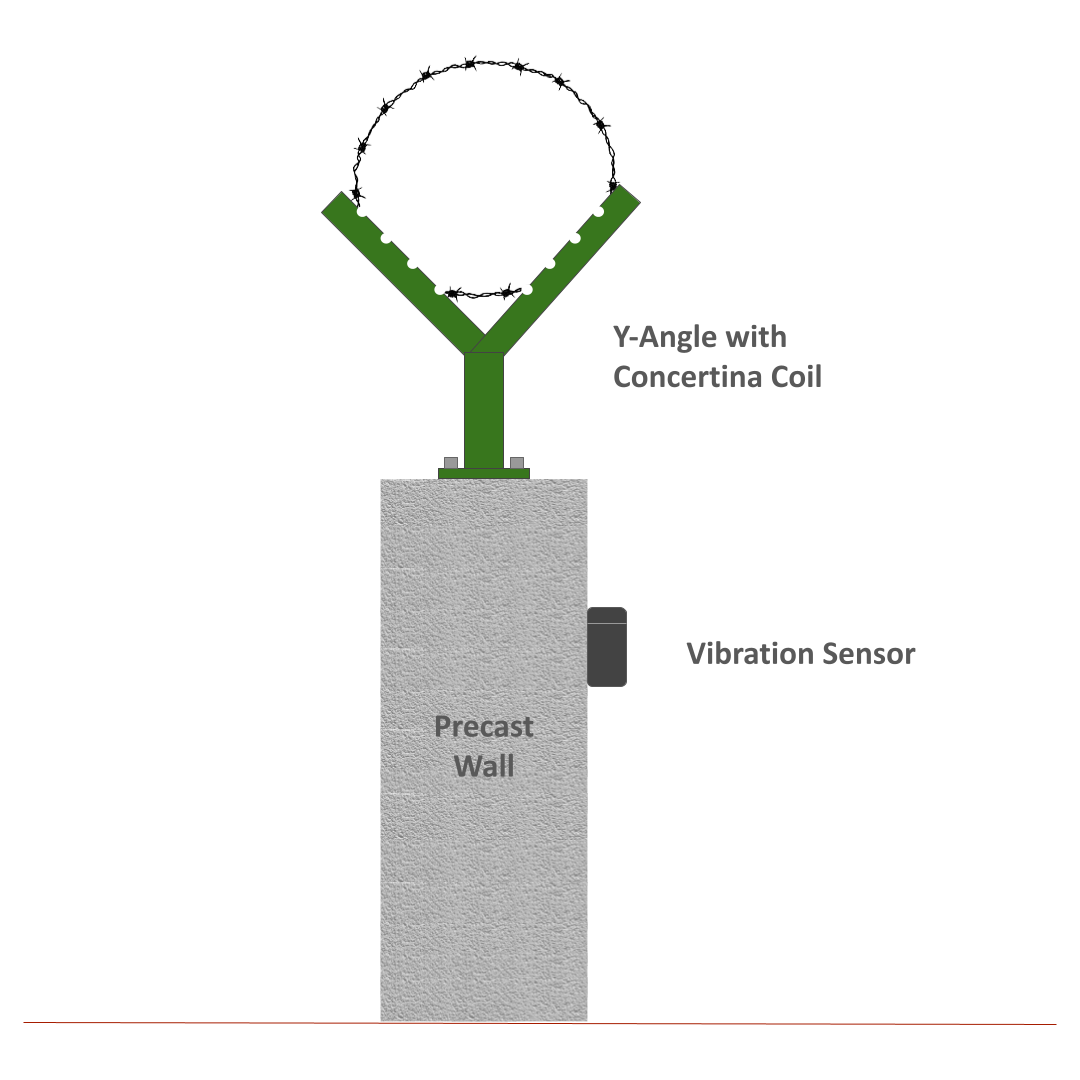

 Option A Wall-top Concertina Coil with Vibration Sensor Demarcation: Precast WallDeterrence: Y-angles with Concertina CoilDetection: Vibration Sensor |

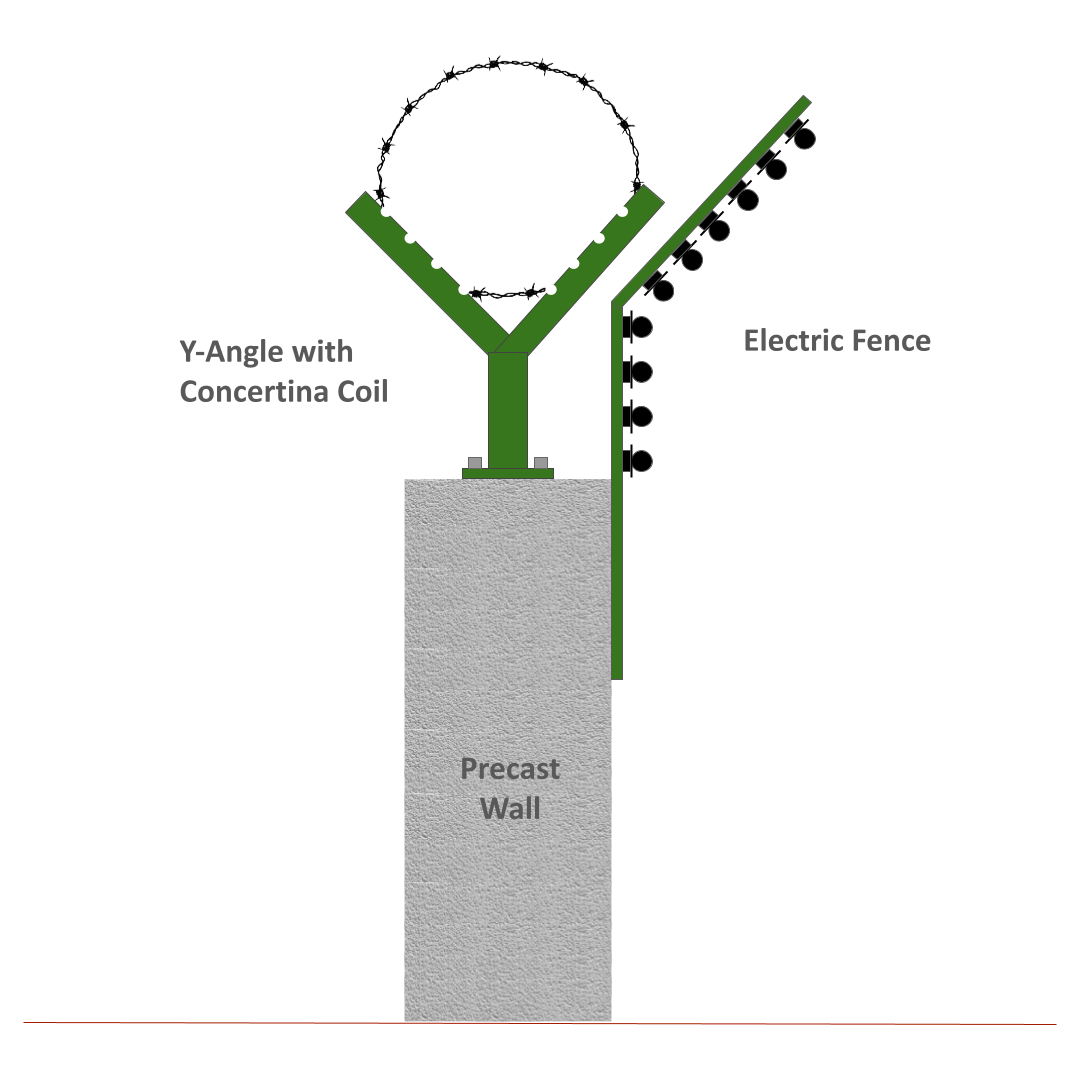

 Option B Wall-top Concertina Coil with Electric Fence Demarcation: Precast WallDeterrence: Y-angles with Concertina CoilDetection: Electric Fence |

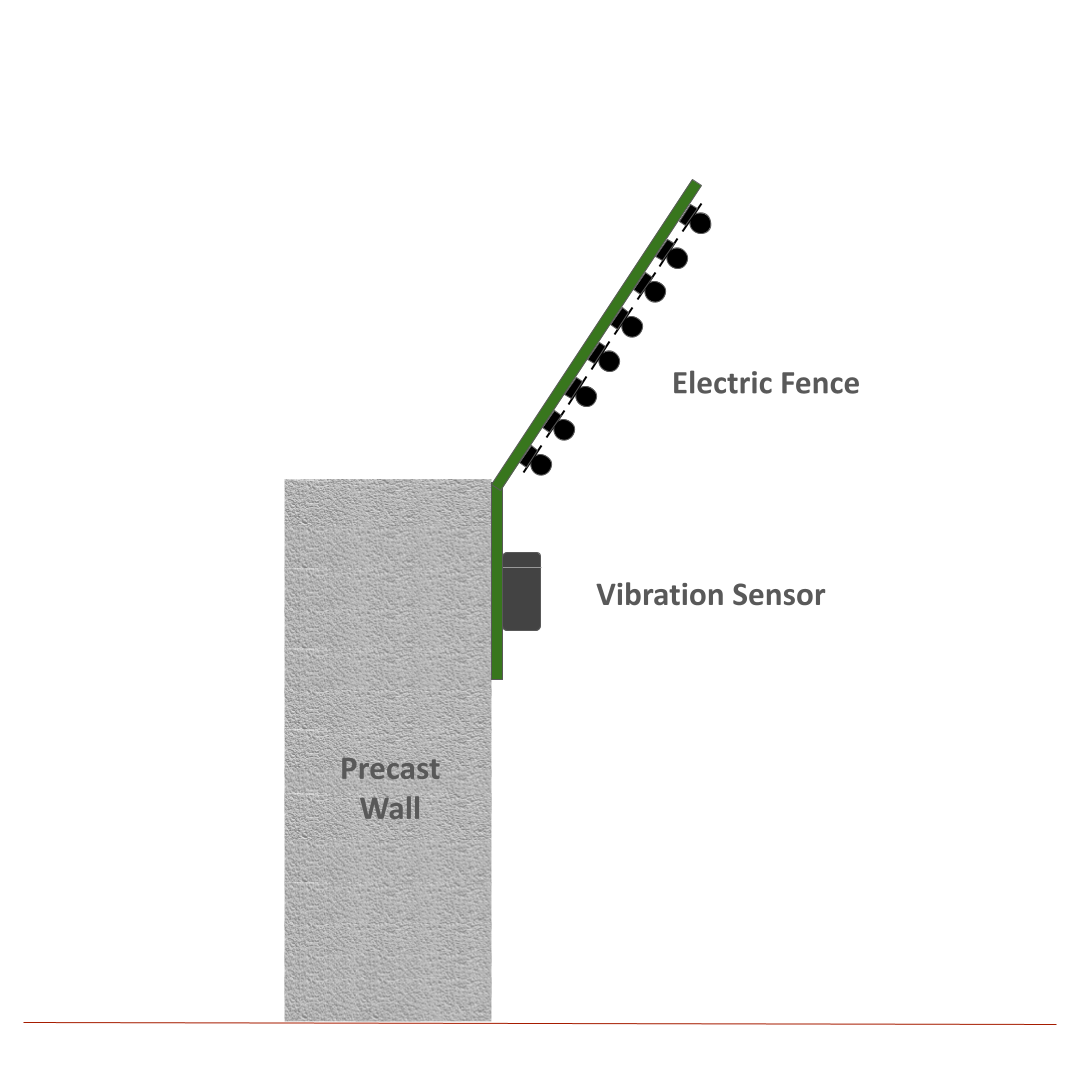

 Option C Wall-top Electric Fence with Vibration Sensor Demarcation: Precast WallDeterrence: Electric FenceDetection: Vibration Sensor |
Traditional Solution with Second Line of Defence
The first line of defense is followed by a second Line of defense, which is typically a see-through fence with some sensors on it to detect climbs and cut. The advantage of such a system is it could give you a series of alarms and indicate the progress of intrusion attempts. There are sanitized corridors in between the first and second life of defence like a trap. There could be some sensors installed here to detect the movement. The width of the Sanitised corridor can vary from a couple of feet to up to 3 metres.
For Perimeter’s without an Existing Precast Wall
Weldmesh: Ideal for high-security demarcation, Weldmesh forms a strong, rigid steel barrier. Its unique panel pattern deters climbing and the mesh size prevents the use of cutting tools for intrusion.
Honeycomb or Chainlink: Chain link fences are ideal for low-security demarcation, while Honeycomb fences are an upgraded version of chain link. Both are easy to install, offer coating options, and are economical and sustainable for various applications.

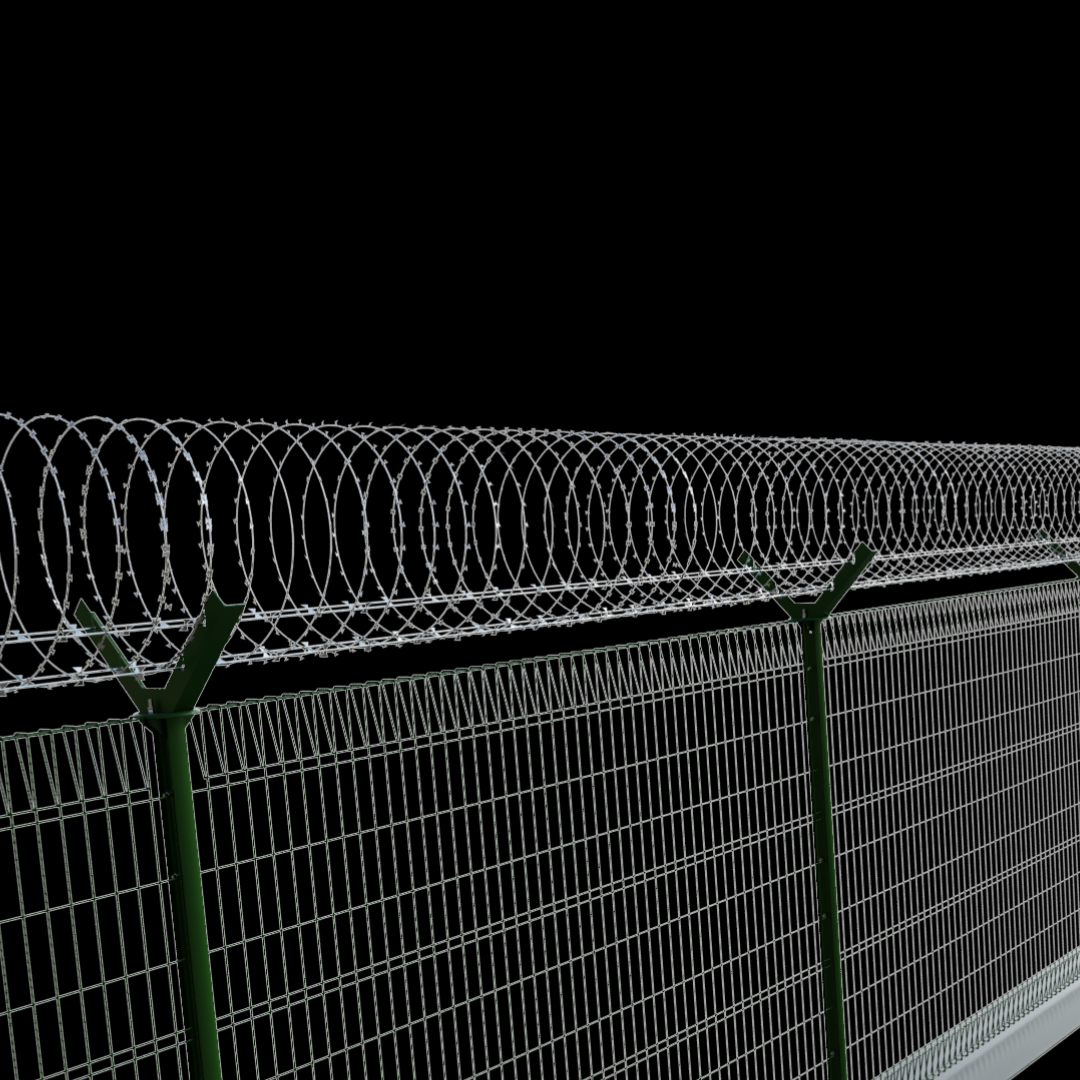

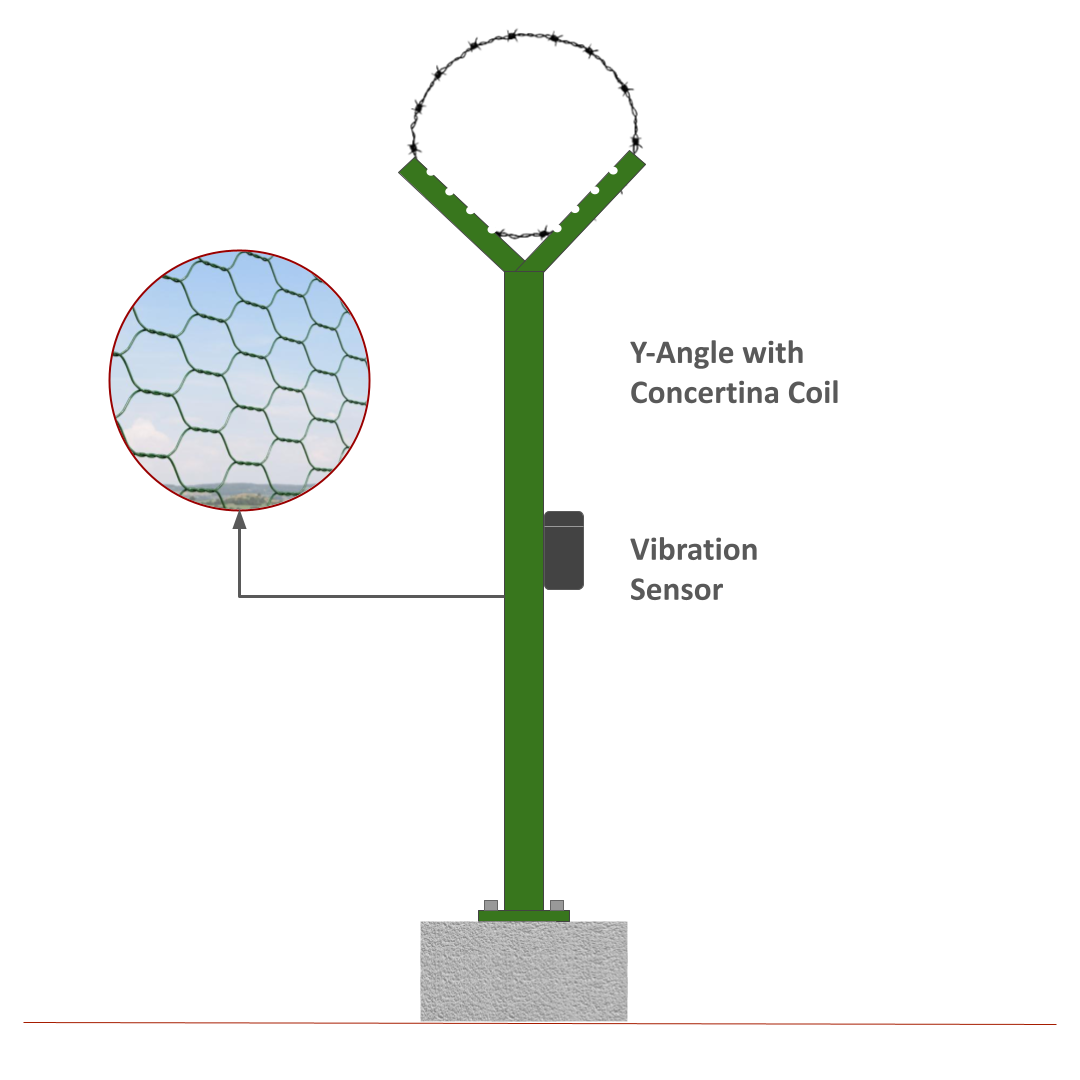

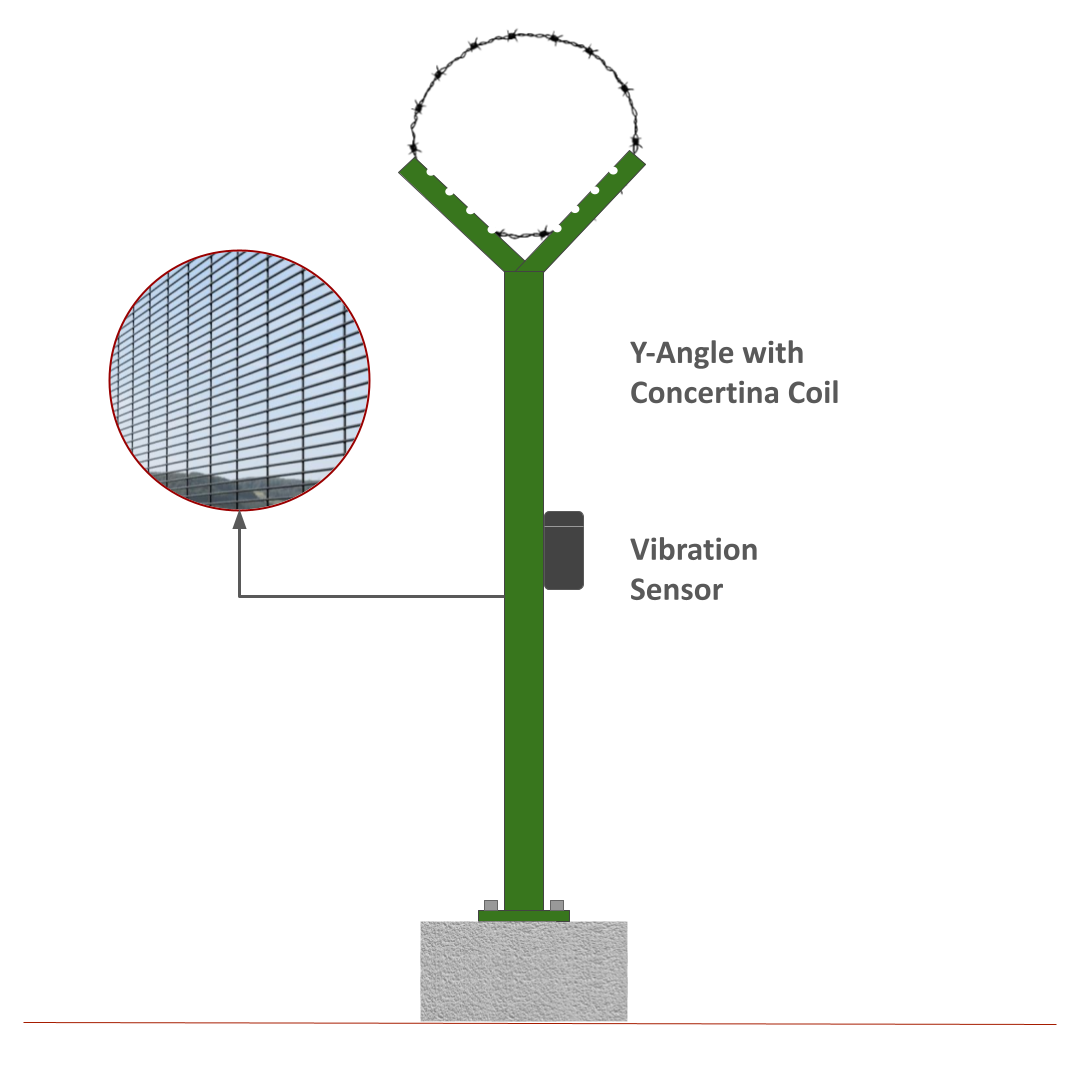

 Option A Welded mesh fence with Concertina Coil & Vibration Sensor Demarcation: Weldmesh Fence Deterrence: Y-angles with Concertina Coil Detection: Vibration Sensor |
 Option B Honeycomb or Chainlink Fence with Piggyback Electric Fence Demarcation: Honeycomb or Chainlink Fence Deterrence & Detection : Piggyback Electric Fence |
FenSense (MeshSense + Razor Sense):
It is a unique integrated perimeter security solution to protect large perimeters with a demarcation and intrusion detection system which is low cost and has reliable detection. The Physical structure demarcates the perimeter and the integrated electronics deter and detect the cut and climbing intrusion.
Main Entrance:
The entrance is the most vulnerable part of the perimeter, typically consisting of a gate, automation, and a boom barrier for frequent operations. Solar Park Security often have multiple entrances, usually 3 to 5.
 |
Track Sliding Gate: Designed for light industrial applications, Track Sliding Gates are ideal for wide entryways (over 6 meters). Standard lengths range from 3 to 12 meters, with customization available as needed. |
| Cantilever Sliding Gate: Also known as hanging or trackless gates, Cantilever Gates use concealed mechanical bearings instead of wheels. Balanced on two hangers, they eliminate the need for a track, resulting in less maintenance. Standard lengths range from 3 to 12 meters, with customization available as needed. |  |
 |

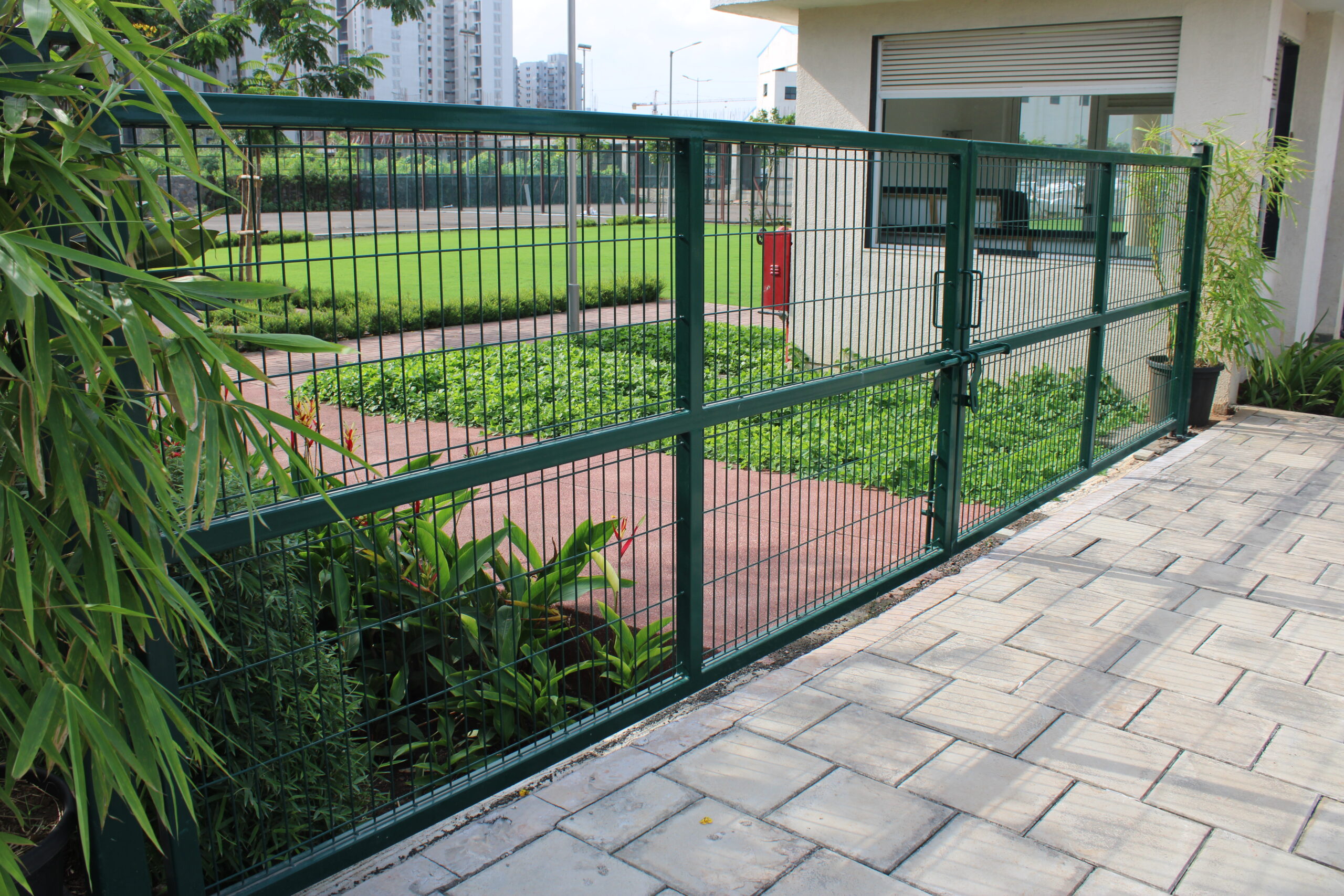

Swing Gate: Easy to install and operate, Swing Gates are an excellent choice for entrance control. They require minimal effort and can be customized. Standard lengths range from 1.5 to 9 meters, with customization available as needed. |
Internal Perimeter:
There are several internal areas within a solar park that need separate fencing on account of it’s safety and criticality like weather monitoring station, transformer yard etc. in most cases the need is only that of demarcation with entry/exit access.
Demarcation: A fence is used for demarcation, which could either weldmesh, honeycomb mesh for chain link mesh fence. The small perimeter will also have a single leaf swing gate for entry/exit purposes.

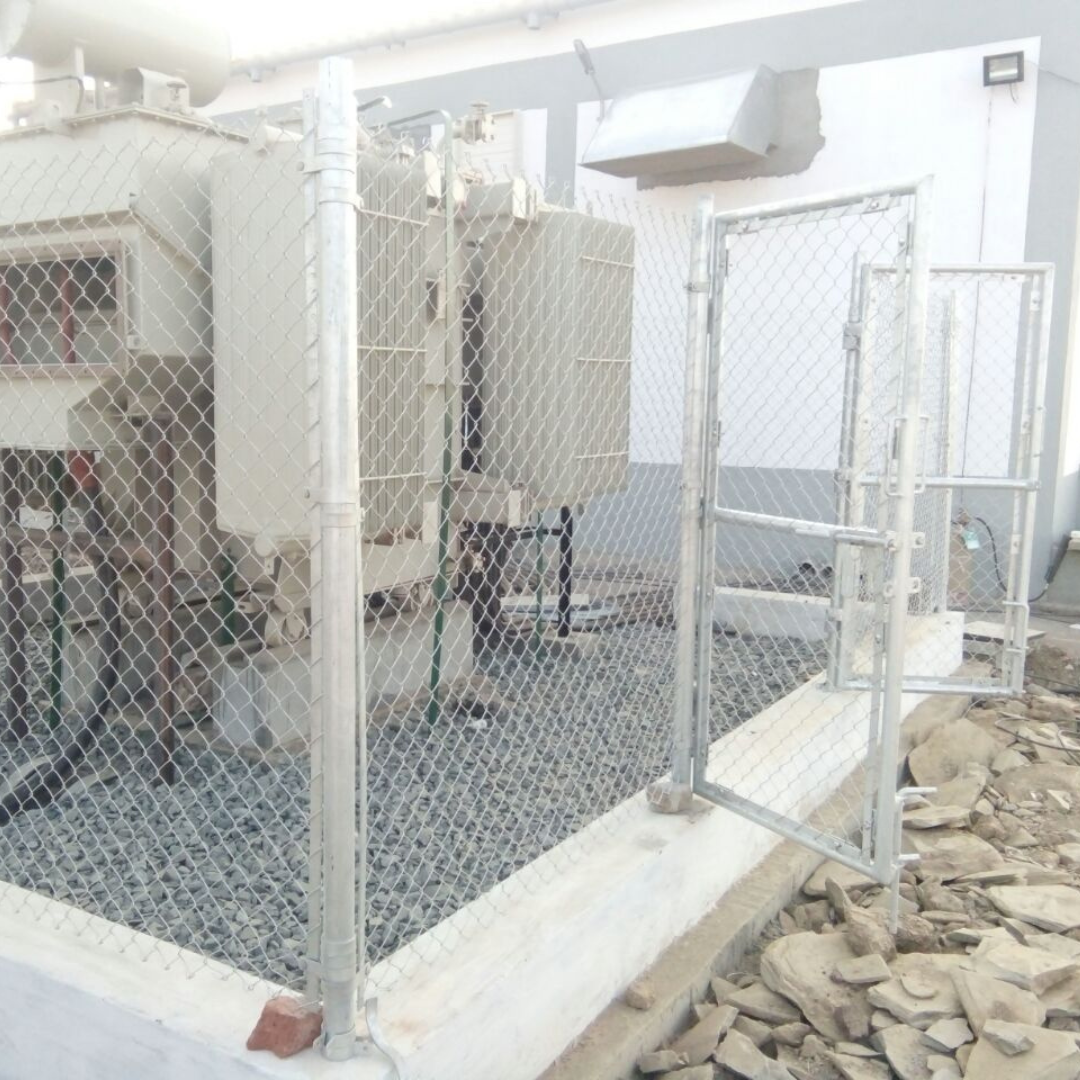

 Chainlink Fence |

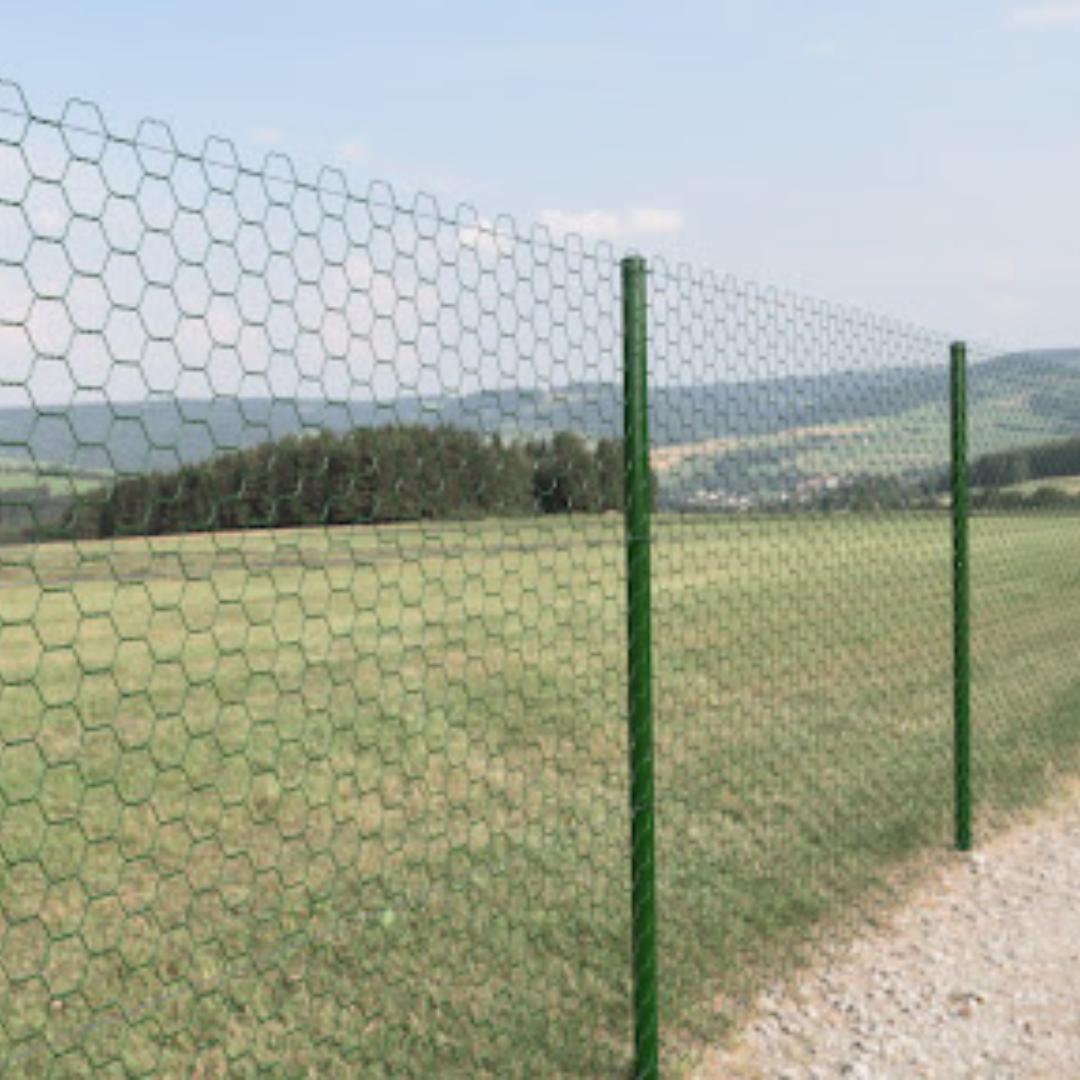

 Honeycomb Fence |

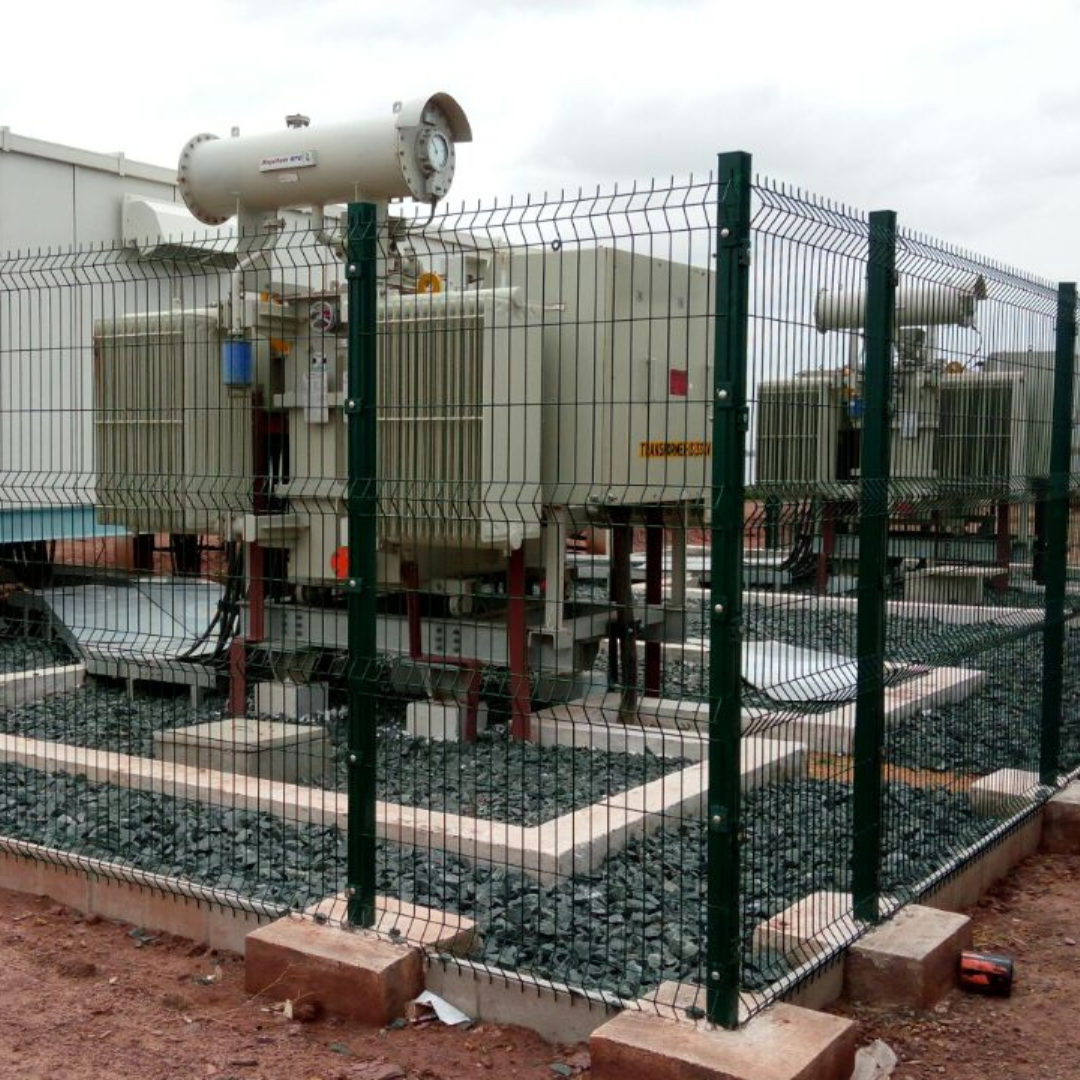

 Weldmesh Fence |
Deterrence: The fence is typically topped up with either Barbed Wire, Razor Blade Tape or Wall Spikes on a straight extension of fence post.

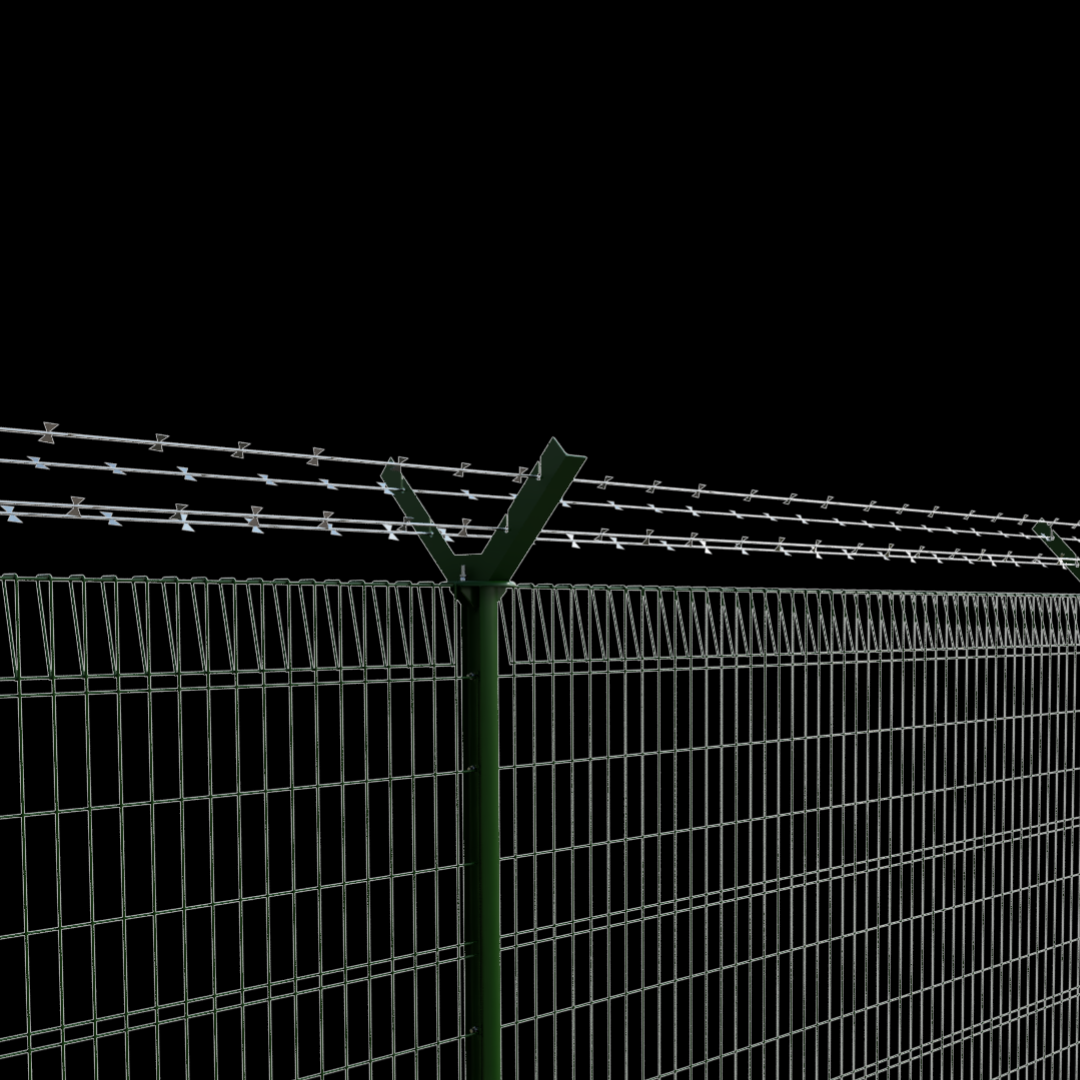

 Barbed Wire as Fence Top |
 Razor Blade Tape as Fence Top |

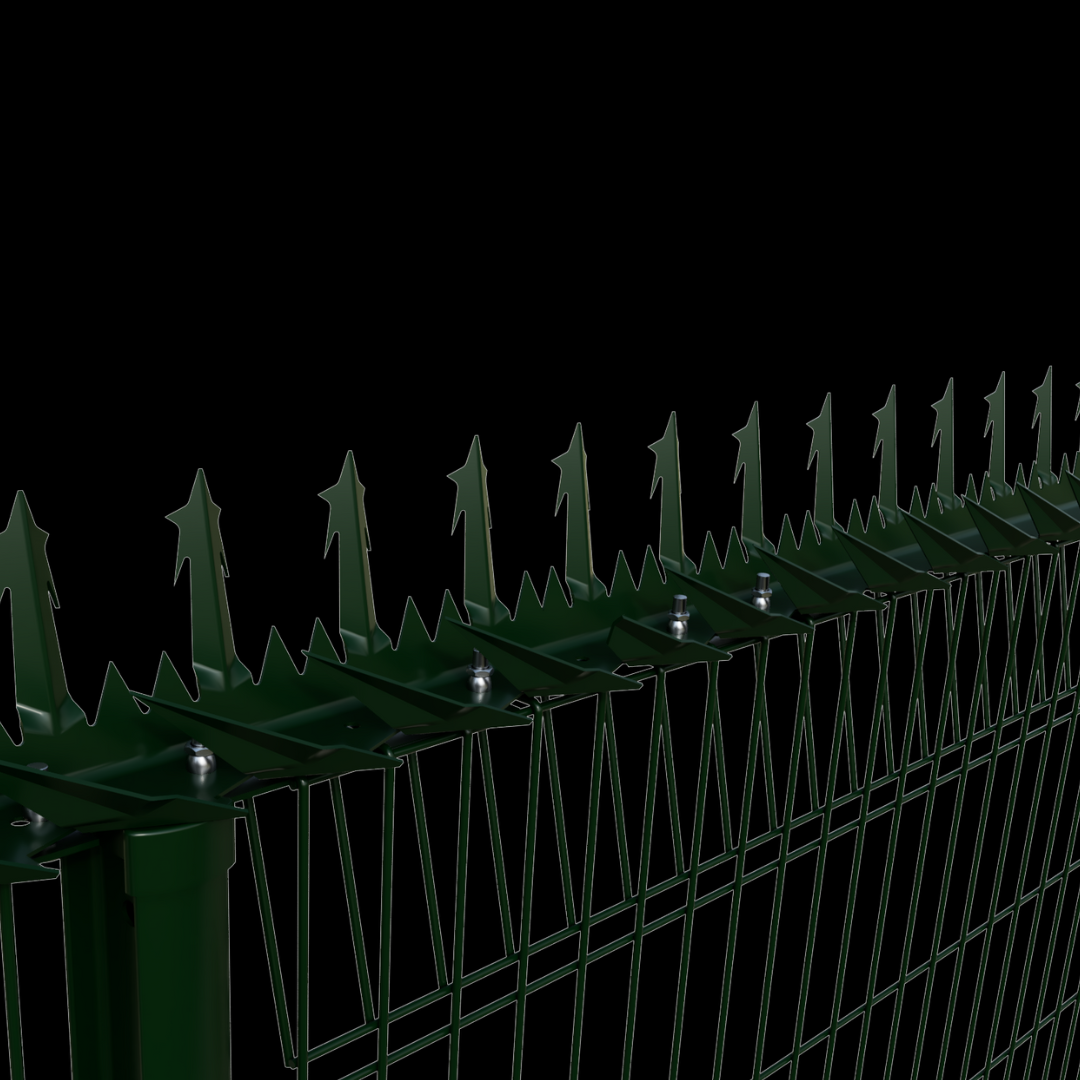

 Wall Spike as Fence Top |
Internal & External Areas:
Many Solar Park Security are built on barren, open lands where the surrounding area is typically uninhabited and flat. Any movement in this area, especially at night, can be deemed suspicious. Detecting movements well in advance—up to a kilometer before an intruder reaches the fence—allows the security team to be alerted and on standby. Additionally, detecting intruders after they’ve entered the premises is crucial, as radar continues to track their movements. In both scenarios, compact surveillance radar and seismic sensors, integrated with surveillance cameras, can be effectively deployed.

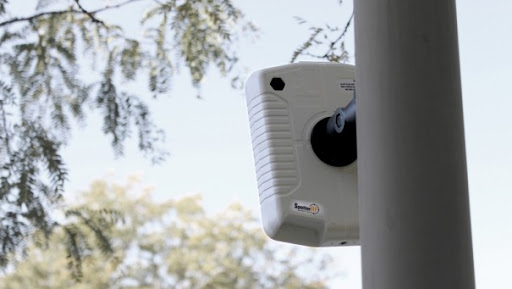

 Compact Surveillance Radar This active intrusion detection system enhances perimeter security by detecting intrusion attempts early, preventing potential losses to the solar park. These radars can identify targets in various environmental and daylight conditions, detecting movements on the ground, water, and in the air. |

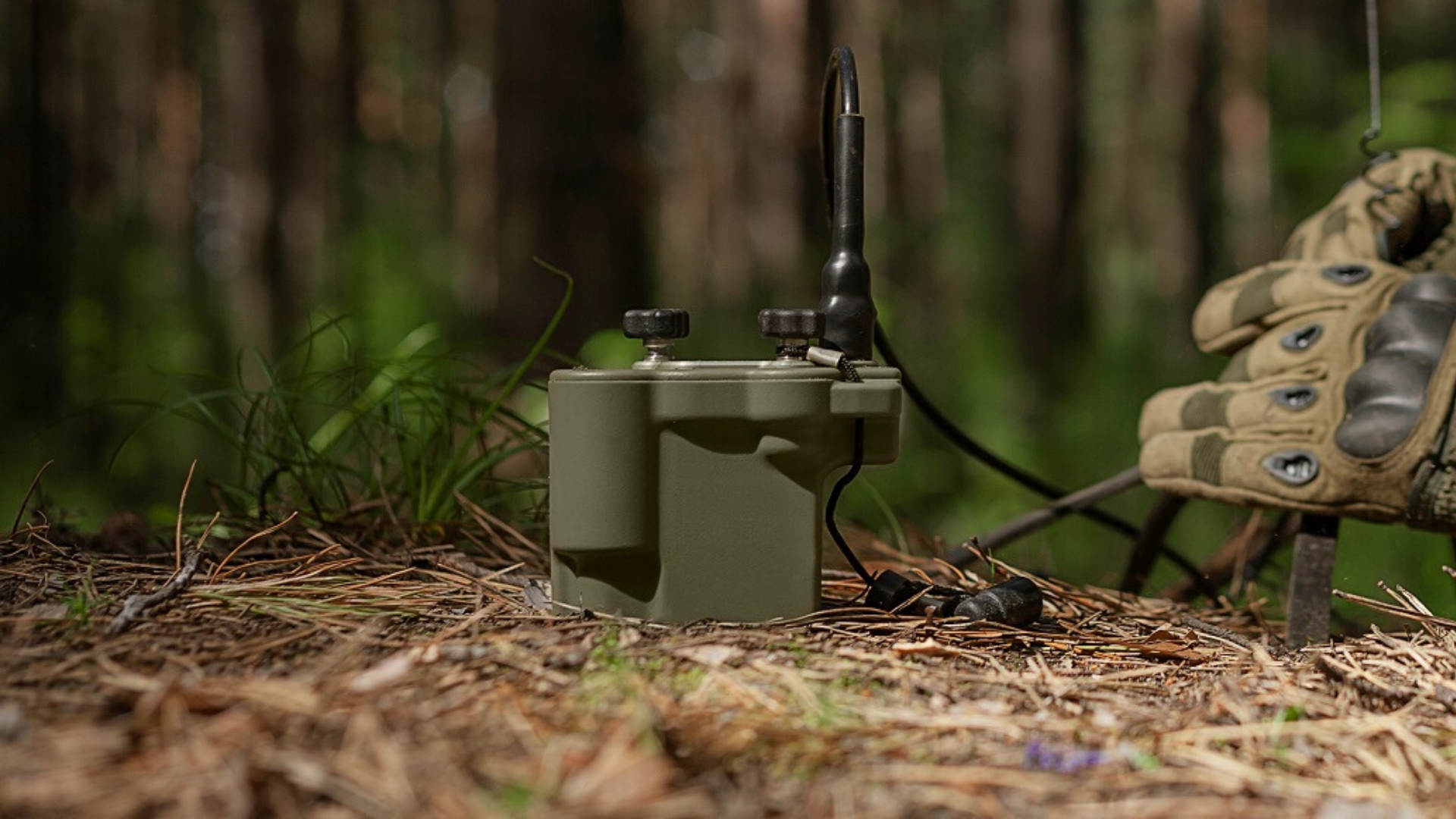

 Seismic Sensors These are underground active intrusion detection devices that use an inbuilt geophone to detect seismic activity. The onboard microprocessor analyzes these signals, filters out noise, and classifies the type of intrusion. Data, including the type of target, time, and location, is transmitted to the control unit. Ideal for detecting intrusions at blind spots in solar parks, it senses ground vibrations up to 200 meters away. |
Conclusion:
Solar Park Security is not merely about installing fences but about crafting a comprehensive defense strategy that integrates various technologies and methodologies to safeguard these vital assets. As India accelerates its solar energy initiatives, ensuring robust perimeter protection is essential to protect these valuable investments from theft, vandalism, and unauthorized access.
By implementing layered security solutions—ranging from advanced barriers like concertina coils and electric fences to sophisticated detection systems such as seismic sensors and compact surveillance radar—solar park operators can create a formidable defense. This proactive approach not only mitigates risks but also ensures the continuous and efficient operation of solar parks, aligning with India’s ambitious renewable energy goals.
Adopting a tailored Solar Park Security plan that addresses the unique challenges of Solar Park Security perimeters will not only enhance protection but also contribute to the overall success and reliability of the renewable energy infrastructure. Investing in comprehensive security measures today will pay dividends in securing the future of solar energy in India.
